Product Overview

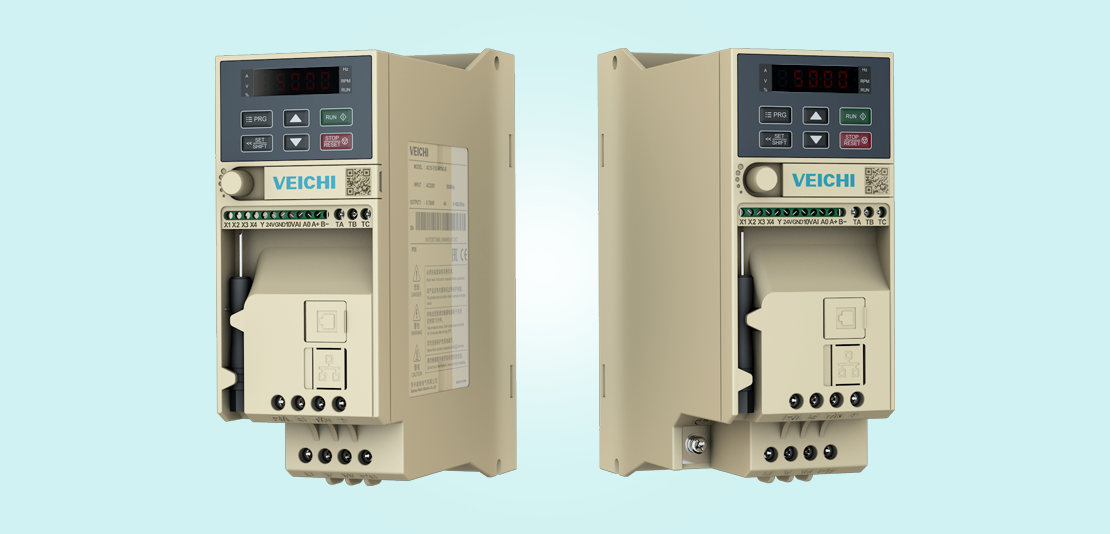

AC10 series frequency inverter represents VEICHI's latest technological platform. AC10 products are a response to the market's demand for miniaturization, high reliability, and cost efficiency. As a slim VFD, the AC10 offers convenient installation, compact size, minimal temperature increase, high protection, robust software performance, and a host of other advantages. Its development benefits from the advanced PLM R&D management system, ensuring a comprehensive, systematic, and traceable approach to hardware, software structure, and testing processes, thereby guaranteeing precision and scientific rigor down to the smallest detail.
Key Features:
• Flexible & Compact

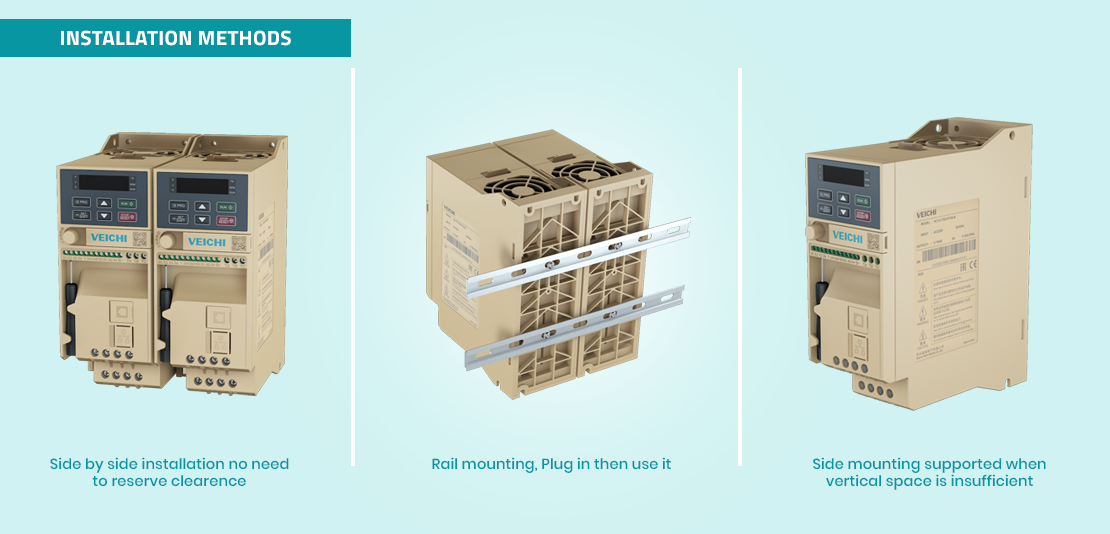

• Versatile Installation

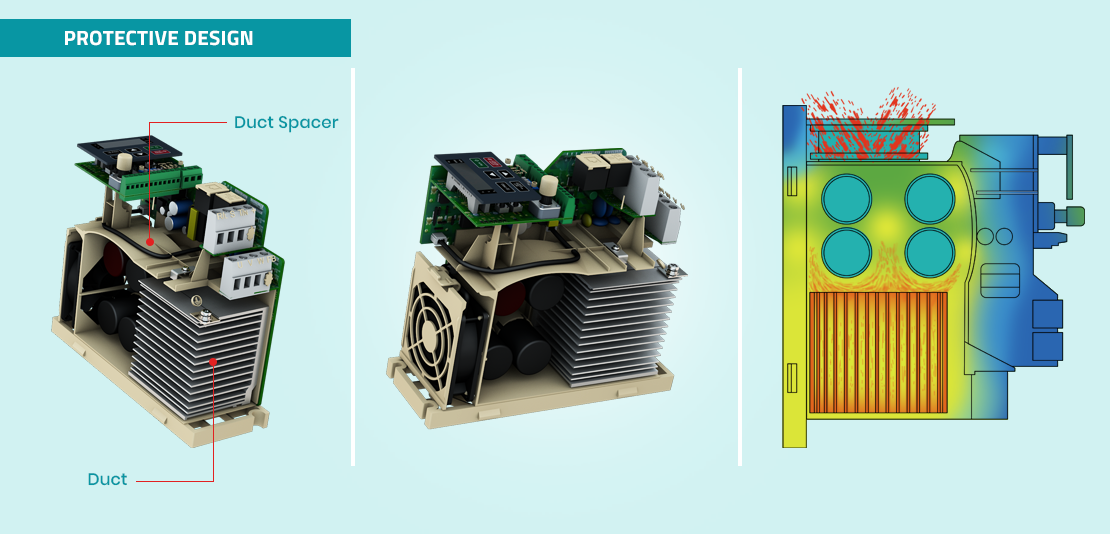

• Protective Design

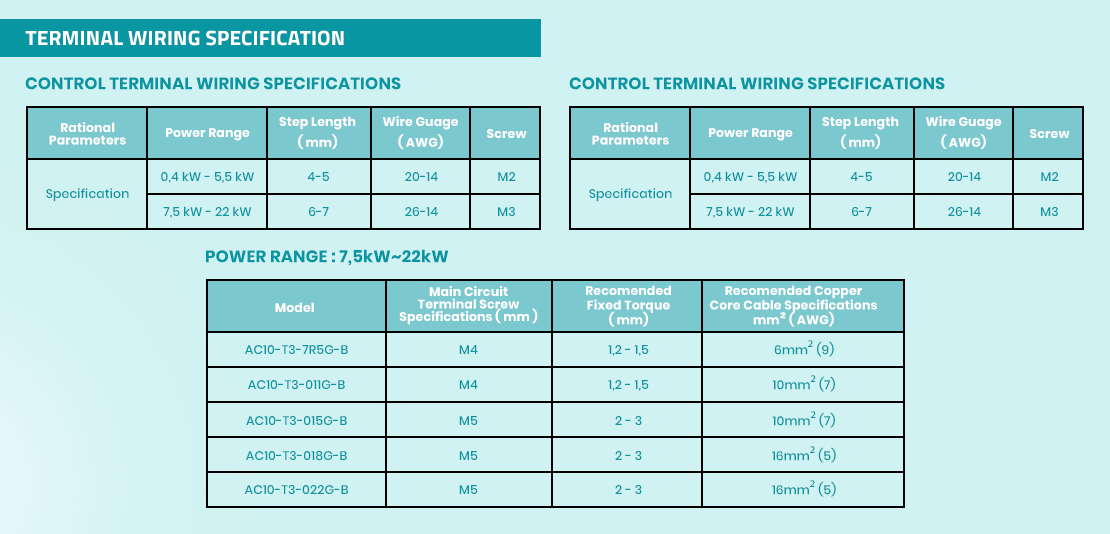

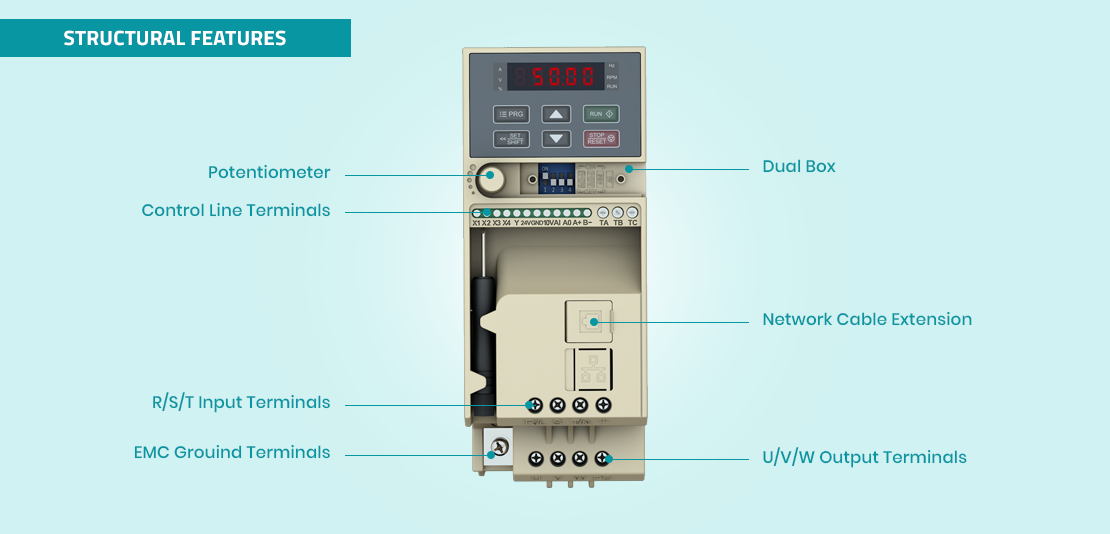

• Simplified Wiring

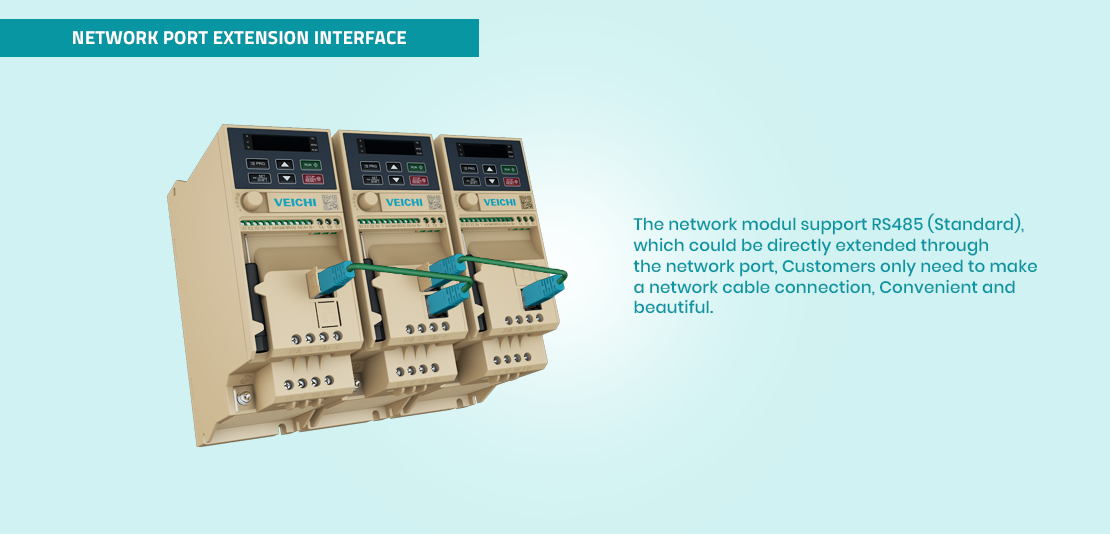

• Expandable Networking
In summary, AC10 Series frequency inverter by VEICHI is a technologically advanced and compact solution that meets market demands for reliability and cost-efficiency. Its slim design, versatile installation options, and robust performance make it suitable for various applications. Plus, advanced protective features and expandable networking capabilities enhance its appeal. Its development process ensures precision and scientific rigor, making it a reliable choice for many industries.
Features :
-
• Protective design with High-Temperature Resistance (up to 50 C)
• Over-voltage and Over-current suppression protection and Wave-by- wave current limit protection
The frequency inverter features several protective functions to ensure safe operation. It can automatically adjust the operating frequency when the bus voltage approaches or surpasses the overvoltage limit, preventing overvoltage protection triggers. Similarly, the overcurrent suppression function continuously monitors and limits load current in real time to prevent excessive current and potential trip faults, making it especially useful for loads with high inertia or rapid changes. While the overcurrent suppression setting is valid only under V/F control, the wave-by-wave current limit operates continuously under vector control, preventing inverter stoppage due to overcurrent faults.
• Excellent Control Performance
AC10 is an advanced frequency inverter that not only offers universal V/F control but also supports PG-free vector control. It excels in control performance and can accommodate more intricate operational situations.
• PG-free vector control, built-in RS485 (Modbus RTU) and CAN (customized), and pulse input
• Multiple functions, small, versatile, and convenient group network expansion
